16x24 gambrel small barn plans

16x24 Gambrel Shed Plans
sku (shed16x24-GB)

Emailed Plans: $54.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $60.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.

The 16x24 storage shed plans include:

  • Storage loft - The multi pitched roof adds 300 sf. of useable loft area inside the shed.
  • 8'-1" wall height - Gives you plenty of head room and still use a home built or factory built door.
  • Home Built Doors - Build your own custom doors or purchase pre-hung factory build doors.
  • 2 Foundations - Skid and concrete slab.

12x16 gambrel shed plans rear view12x16 Gambrel shed plans end view12x16 gambrel shed plans top

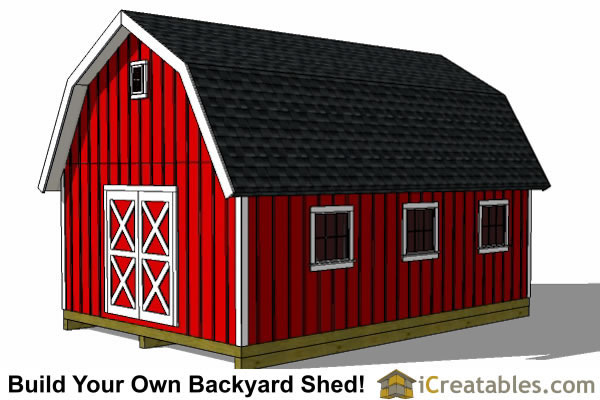

16x24 gambrel shed right rear16x24 gambrel shed rear elevations16x24 gambrel shed front left

16x24 Gambrel barn shed plans floor plan

16x24 gambrel shed floor plans

How To Frame a Gambrel Roof Rafter Watch and learn how to frame a gambrel roof rafter or gambrel roof truss for the 16x24 gambrel shed plan.

16x24 Gambrel Shed Plans Include The Following:

  • Alternalte Options: The 16x24 gambrel barn shed plans can be built with either factory built doors or you can build the doors using the door plans included with the shed plans.
  • Materials List:The 16x24 gambrel barn shed plans come with a complete materials list that is broken down by parts of the shed.
  • 2 Foundations: There are 2 different foundations are included in the plans; Wood skid, Concrete slab
  • Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is 8'-1".
  • Doors: The 16x24 shed has 2 doors, the double doors make a 6'-0" x 6'-8" opening. You can either build the doors using the included door plans or purchase factory built pre-hung doors.
  • Windows: The plans call for 5 - 2626 windows (2'-6" x 2'-6"). This is a standard window size that can be ordered from any window company. You may add other windows on the other walls if desired.
  • Siding: Textured Plywood siding with 1-1/2" battens at 12" on center are shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding.
  • Roof: The roof on the 16x24 gambrel shed is large enough that we recommend that the owner and builder consult a local structural engineer to size and specify the framing members and connections. The plans do include a guideline for the rafter construction.
  • Roof Overhang: 12" on the front and back. 6" on the sides.
  • Roofing = Asphalt shingles are shown on the materials list and plans but metal may also be used.
  • Trim = 1x3 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors.

Example Of The 16x24 Gambrel Barn Shed Plans.

16x24 gambrel shed plans

Large View of 16x24 Gambrel Shed Plans

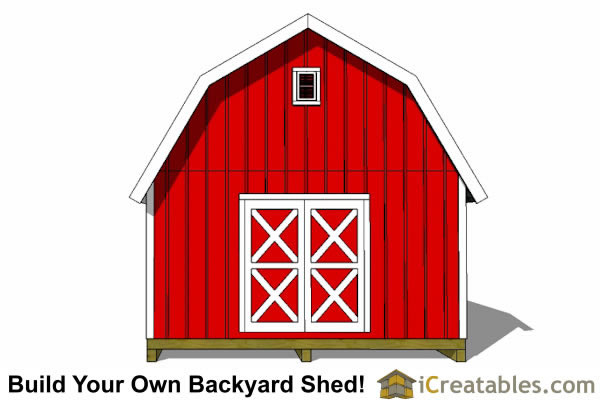

16x24 Gambrel Shed Front Elevation Large

FREE Shed Materials List (Click To Download and Print)

Free storage shed plans materials list
Shed Heights to Meet City Buiilding Code Requirements Click To See The Heights Of Our Shed Plans
