Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.
The 12x12 Lean To shed plans include:
7'-7" wall height - The lower wall height is 7'-7" which allows a pre-hung factory built door to go on any wall and reduces the amount of siding and labor needed to build the shed.
Factory or Home Built Doors - Using a pre hung door makes the door building and hanging job much easier. The shed plans also include door plans if you prefer to build your own doors.
Multiple Door Options - Drawings explaining how to build the door on the end or sides of the shed.
Optional door configurations included with the lean to shed plans
12x12 Lean To Shed Plans Floor Plan

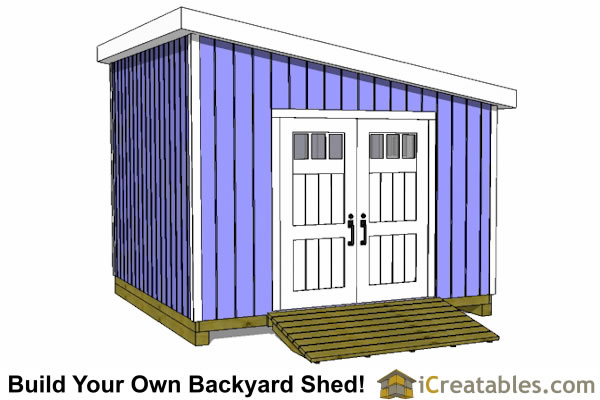

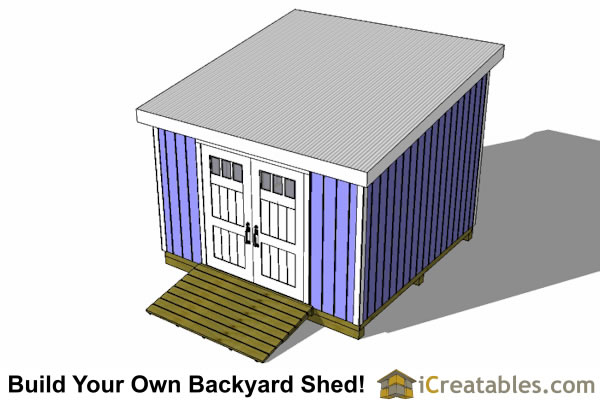

Example of our 12x12 lean to shed plans.
12x12 Lean To Storage Shed Plans Include The Following
Materials List:The 12x12 Lean To shed plans come with a complete materials list that is broken down by parts of the shed.
Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.
Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.
Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
Wall Height: The lower shed wall height is 7'-5", the higher wall is just over 10'-0".
Doors: The doors are a pair of 3068 pre-hung, factory made doors for ease of installation. A single door may be installed if desired. The shed plans include plans detailing how to build home built doors that fit in the 6068 door opening.
Window: There are no windows on the plans but windows can be added on any wall.
Siding: Textured Plywood siding is what is shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding or vinyl siding.
Roof:The roof is framed using 2x8's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you a template and dimensions for the birds mouth cut angles. Check with your local building department to see if you can use smaller rafter sizes in your area.
Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
Roof Overhang: 6" on the front and back. 1" on the sides.
Roofing = PBR Corrugated metal roofing shape designed for low slope roofs.
Trim = 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
Floor Load: 50 pounds per square foot for framed floors.
Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
