22x28 Garage With appartment

22x28 Garage Plans

sku (gar22x28-2C2D-A)

Emailed Plans: $149.99
(24" x18" Emailed PDF)

buy now button

Postal Mailed Plans: $249.99
(24" x18" Postal mailed)

buy now button

All Our Garage Plans Feature:

Building Permit Ready - Our garage plans are compliant with the International Residental Code (IRC) within the parameters they have set which make them useable to apply for a building permit in most areas of the US without additional engineering.

Start Now - Instant download or Paper Copies- PDF Files allow you to download the garage plans and print them. You can print the plans on 8 1/2 x 11 paper but the scale will be very small. To print the plans to the proper scale the plans will need to be printed on 18 x 24 inch paper. Most local print and copy shops have a printer that will print this size. We can email the garage plans to the print shop or you can email or take it to them using a thumb drive.

Materials List - Easily get bids and use the list numbering system to know what part goes where.

Plan Details sku (Gar22x28-A)

Square Feet: Garage = 616, Apartment = 536

Door Sizes: 2 Garage doors 9ft. wide x 8ft. tall. 1 man door 3ft. wide 6ft. x 8in. tall

Width: 22-0

Length: 28-0

Approx. Height: 25-10

Foundations: 3 Foundation Types: Slab, Stem Wall Poured, Stem Wall Block

Roof Pitch: 12/12 , 4/12

Ceiling Height: Main 9-1, Apartment 8-1

Exterior Wall: 2x4

Bedrooms: 1

Baths: 1

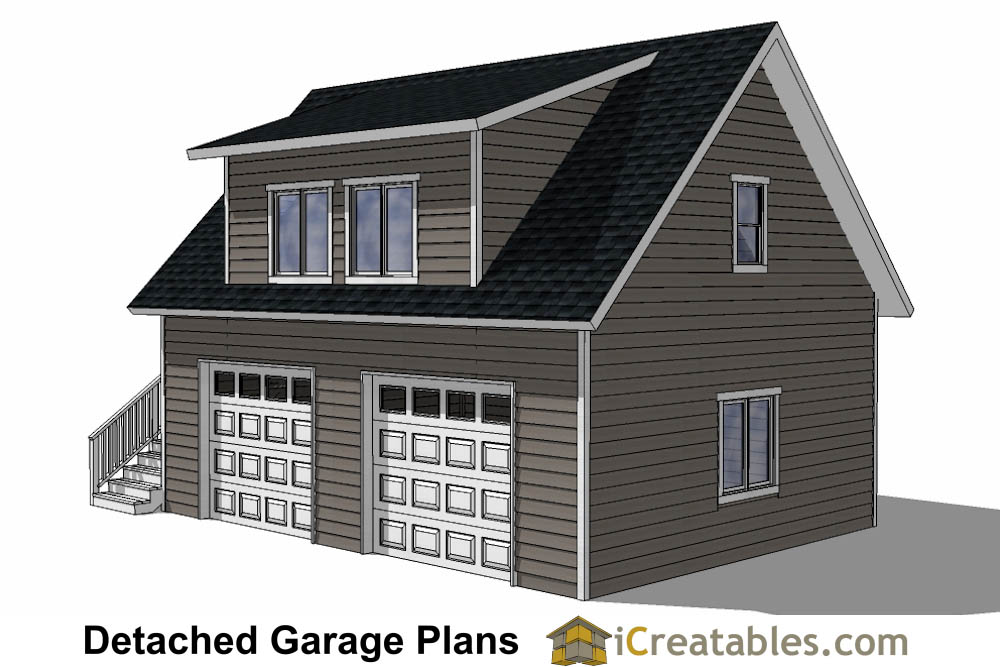

24x28 garage plans with apartment rear24x28 garage plans with apartment right

Garage Plan Floor Plans Shown With Optional Features

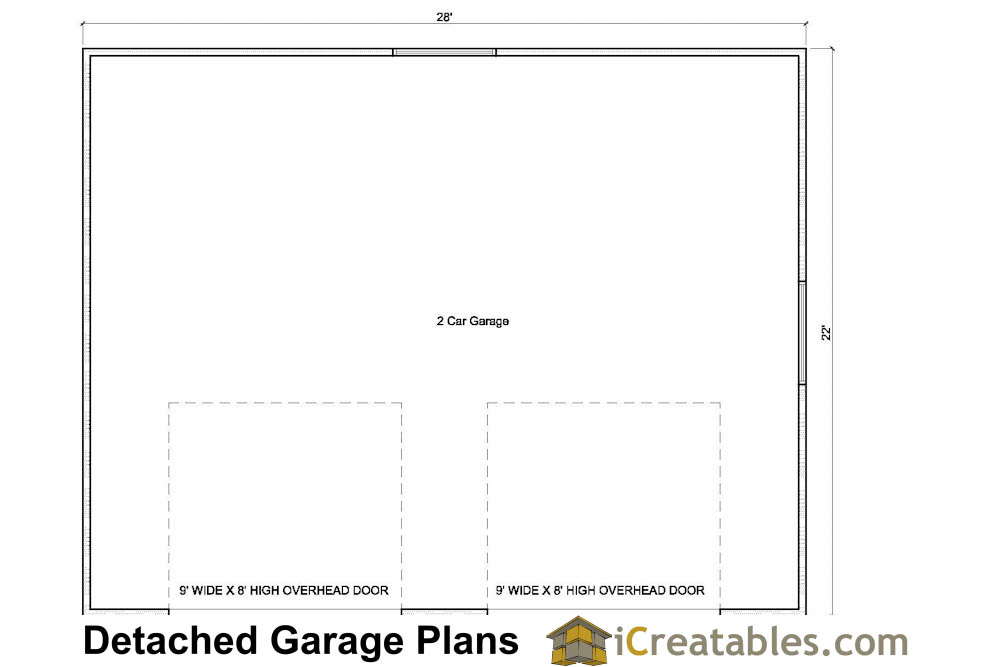

Garage with apartment main floor
Garage with apartment upper floor
