Emailed Plans: $19.99
(8 1/2" x 11" Emailed PDF
Postal Mailed Plans: $25.99
(8 1/2" x 11" Postal mailed)
FREE - How To Build A Shed eBook included with every shed plans purchase.
Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.

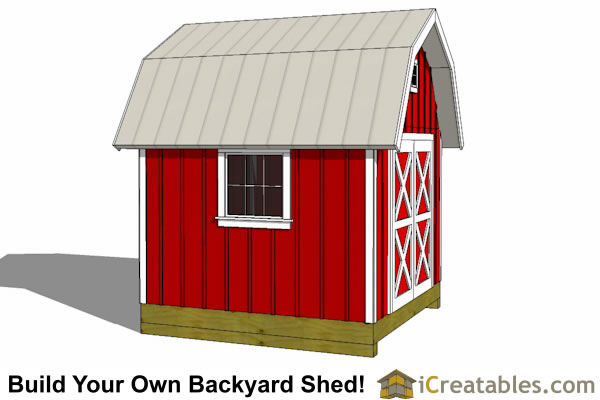

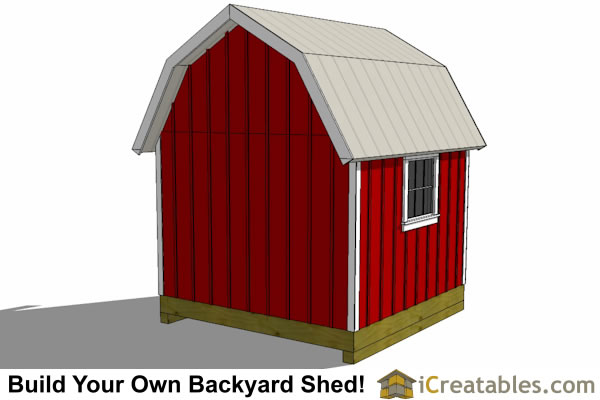

The 10x10 gambrel storage shed plans include:
Storage loft - The multi pitched roof adds 60 sf. of useable loft area inside the shed.
7'-7" wall height - Gives you plenty of head room and still use a home built or factory built door.
Home Built Doors - Build your own custom doors or purchase pre-hung factory build doors.
5 Foundations - Skid, concrete slab, poured concrete pier, concrete block pier, precast pier.
How To Frame a Gambrel Roof Rafter Watch and learn how to frame a gambrel roof rafter or gambrel roof truss for the 10x10 gambrel shed plan.
Alternalte Options: The shed plans can be built with either factory built doors or you can build the doors using the door plans included with the shed plans.
Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
5 Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.
Floor: 2x8 floor joists at 16" on center with 3/4" floor sheathing.
Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
Wall Height: The shed wall height is 7'-7".
Doors: The double doors make a 6'-0" x 6'-8" opening. You can either build the doors using the included door plans or purchase factory built pre-hung doors.
Windows: The plans call for 2 - 2626 windows (2'-6" x 2'-6"). This is a standard window size that can be ordered from any window company. You may add other windows on the other walls if desired.
Siding: Textured Plywood siding with 1-1/2" battens at 12" on center are shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding.
Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
Roof Pitch: 10/12, this means that for every 10 inches of rise there is 12 inches of run horizontally.
Roof Overhang: 4" on the front and back. 1" on the sides.
Roofing = 25 year asphalt shingles.
Trim = 1x3 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
Floor Load: 50 pounds per square foot for framed floors.
